Construction of 938 Nos. Family Quarters (900 Nos. Type-II & 38 Nos. Type-III) and Development Work including Internal Electrical Installation, at GC, CRPF, Amethi (UP) on EPC basis.

GC, CRPF, Trishundi, Amethi

Project Name : Construction of 938 Nos. Family Quarters

Innovating Technology


112,54.19 Lakh

Project Budget


11 Oct 2014

Start Date


01 Jan 2019

Completion Date


Amethi

Location

Project Team / Contact Us

S.No. Name(Mr/Mrs) Designation Office Address Office Number Mobile Number Email ID
1 Manoj Kumar Superintending Engineer Innovating Technology
05322103157
9450074556
Innovating Technology
2 Vijay Kumar Gupta Executive Engineer Amethi Project Division, CPWD, Amethi
05368233004
8588872988
amteecapd@cpwd.gov.in
3 Akbal Singh Assistant Engineer-1 Amethi Project Division, CPWD, Amethi
05368233004
9415970289
amteecapd@cpwd.gov.in
4 Rajiv Kumar Srivastava Assistant Engineer-2 Amethi Project Division, CPWD, Amethi
05368233004
9670522223
amteecapd@cpwd.gov.in

Highlights

S.No. Description Images
1

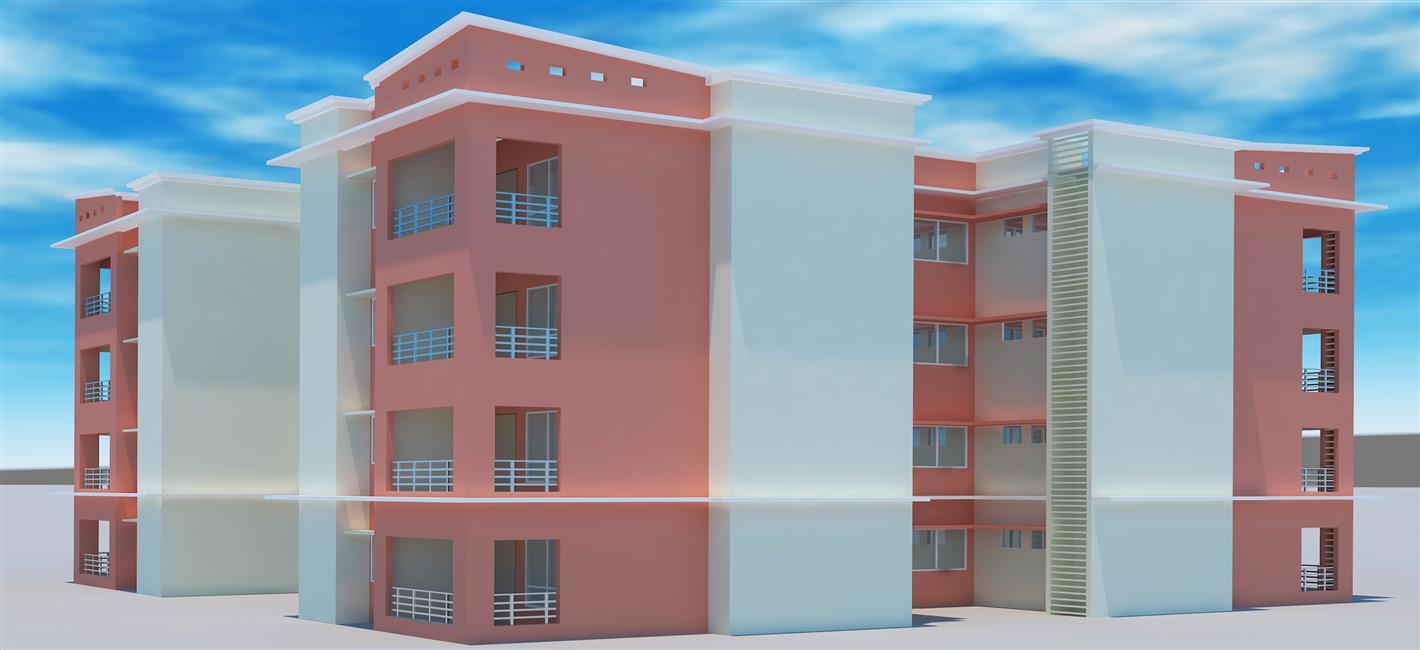

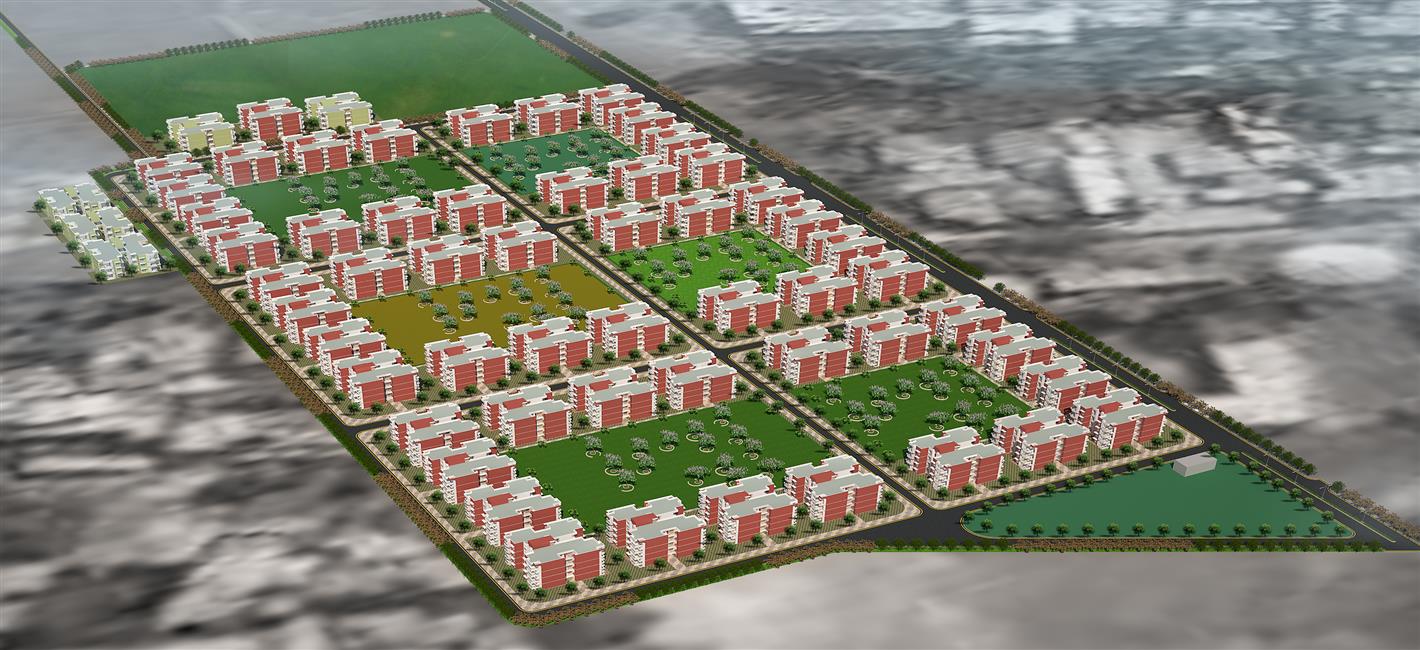

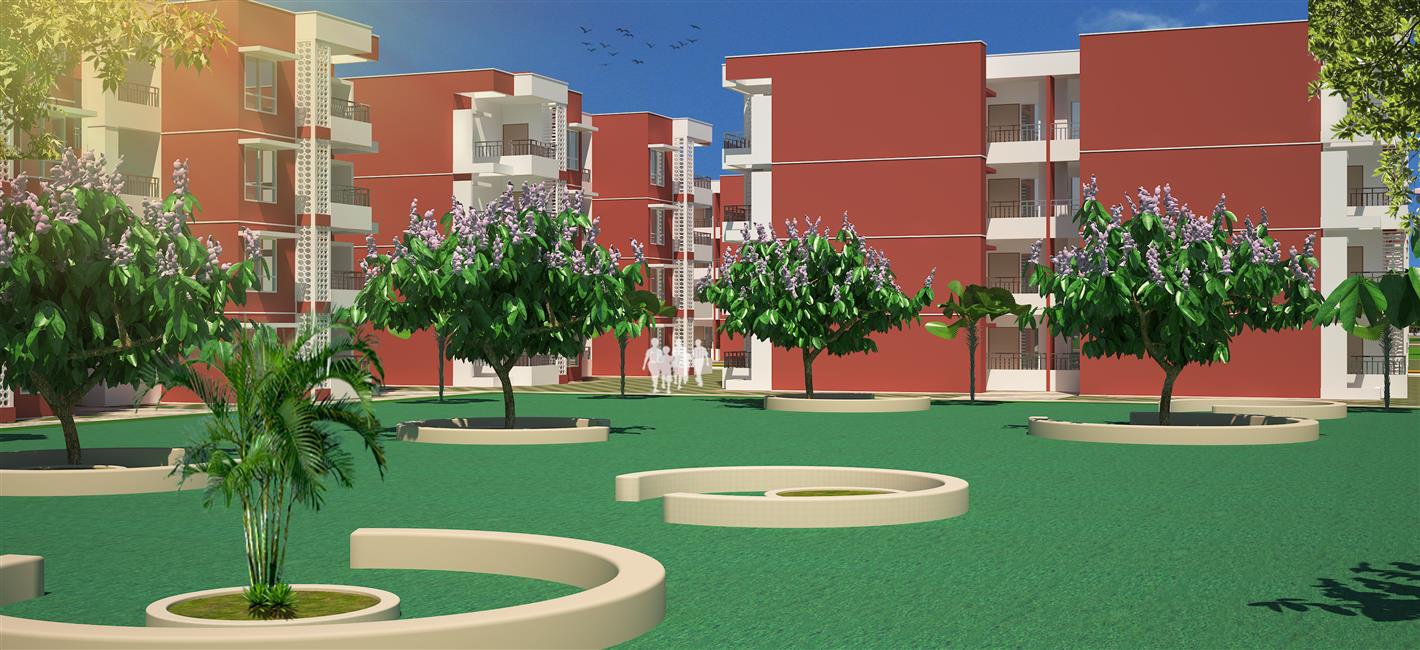

Photo graphs
2
3

Implementation Strategy

S.No. Description Images
1
                                                                    Salient Feature
1 Name of work:-   Construction of 938 Nos. Family Quarters (900 Nos. Type-II & 38 Nos. Type-III) and Development Work including Internal Electrical Installation, at GC, CRPF, Amethi (UP) on EPC basis.
2 Agency:-    M/s  Hombale Constructions and Estates Pvt Ltd. # 1312, 11th Main, Vijayanagar, Bangalore
3 A/A & E/S:-   134,17,52,646/-    Say  134.18 Crore
4 Estimated Cost:-   1,28,01,21,072/-    Say 128.01 Crore
5 Tendered Amount:-   112,54,19,350/-    Say 112.54 Crore
6 Time Allowed :-   24 Months (02 months for planning and designing & 22 months for execution)
7 Date of Start :-   21.07.2017
8 Date of completion :-   20.07.2019
9 Number of Block for T-II Qtrs :-   57 Blocks ( 54 x 16 + 3 x 12 = 900 Qtrs)
      54 Block G+ 3(4 flats at each floor)
      3 Block G+2 (4 flats at each floor)
10 Number of Block for T-III Qtrs :-   3 Blocks ( 2 x 12 + 1 x 14 = 38 Qtrs)
      2 Block G+ 2 (4 flats at each floor)
      1 Block G+2 (4 flats at GF ,1st F &   2nd F and  0nly 2 flats at 3rd floor)
11 Plinth Area:-    As per tendered drawings
  Type- II    900 x 71.35 = 64215.00 sqm
  Type- III   38 x 82.58 = 3138.04 sqm
  Total   67353.04 sqm Say 67353.00 sqm
12 Percentage progress:-   38%

13 Physical Progress:-              1 Foundation work completed
                 2 Super structure work is in progress



Lessons Learnt / Take Aways

S.No. Description Images
1



  Design  & Scope

1 The agency shall prepare architectural design, structural design, and design of all required services, execution of work & services and handing over the assets after making them habitable in all aspects. The work is to be executed on EPC (Turn Key) basis.


2 The Project is based on RCC monolithic construction using aluminum form work including foundation on Raft/ Isolated/ Combined footings. The minimum height of each floor shall be 3150 MM (from floor to floor).


3 The agency shall design of all civil, electrical and horticulture services their integration and installation and commissioning.


4 Development of area, internal road, street lighting, paths etc.

5 The building shall be constructed by using RCC only. There is no provision for brick wall and plastering.


6 The wall and slab etc. shall be shutter finish only and the internal and external finishing of ceiling / walls shall be done by applying putty and paint.


7 All rooms shall be provided with vitrified floor tiles of size 600x600 mm  laid with adhesive and with spacers, groove filled with epoxy grout.
(i) Corridor & staircase area: Kota Stone flooring fixed with Adhesive
(ii) Balcony, Kitchen, WC Bath - Antiskid ceramic floor tiles of size 300x300 mm  laid with adhesive and with spacers, groove filled with epoxy grout


8 Alluminium shuttering system has been adopted for RCC monolithic construction.

9 By adopting  Aluminum shuttering  in construction works, work may be executed within a short span of time along with ensureing better quality of RCC work. With assurance of systematic work planning and scheduling sequential work activities, repetition of  Aluminum shuttering system may be possible to achieve within 2 to 3 days. One working day is required for  internal wall and slab shuttering and one day for outer shuttering, slab reinforcement and electrical conduit and third day is for miscellaneous works. Pouring of concrete is also possible on 3rd day itself. Thus Aluminum shuttering serves its purpose by reducing the repetition cycle to 3 days, whereas in conventional system, repetition cycle is possible in 10 to twelve days. it may also reduces the cost of work because Plastering etc is not required.




↑
