Project Name : Dr. AMBEDKAR NATIONAL MEMORIAL

Plot area of the campus is 7274 sqm and built up area is 6758 sqm. Building having 3 basements and Ground Floor has been designed as R.C.C. framed structure with a floor height of 4.5m except the Ground Floor, where the floor height is varying from 9m to 11m. Architectural planning of the building was entrusted to Consultant and an estimate amounting to Rs. 99.64 Cr. was framed. A/A & E/S amounting to Rs. 99.64 Crore was issued on 02.07.2015 with completion period of 30 months after getting the approval from various local bodies which was received on 14th December 2015. Hon’ble Prime Minister Sh. Narendra Modi laid the foundation of the Memorial on 21.03.2016 and the work actually started at site on 21.04.16. The work completed in March, 2018 and Hon’ble Prime Minister inaugurated the memorial and dedicated it to nation on 13.04.2018.

A/A & E/S - 9964 Lakh

Project Budget

Start Date

Completion Date

DELHI

Location

Project Team / Contact Us

S.No.	Name(Mr/Mrs)	Designation	Office Address	Office Number	Email ID
1	Tarkeshwar Tiwary	Project Manager	Development Project Circle	01123379041	delpmdpc.cpwd@gov.in
2	Sushil Kumar Prasad	Executive Engineer (Civil)	Development Project Circle	01123379041	eedpd2.cpwd@gmail.com
3	Vinay Kumar Jain	Executive Engineer (Electrical)	Development Project Circle	01123379041
4	Jagjit Singh	Assistant Engineer (Civil)	Development Project Circle	01123379041
5	Kulwinder Jit Singh	Assistant Engineer (Civil)	Development Project Circle	01123379041
6	Chandra Bali Singh	Assistant Engineer (Electrical)	Development Project Circle	01123379041
7	Harbir Singh Rohilla	Assistant Engineer (P)	Development Project Circle	01123379041

Smart Features

S.No.

Smart Features

Images

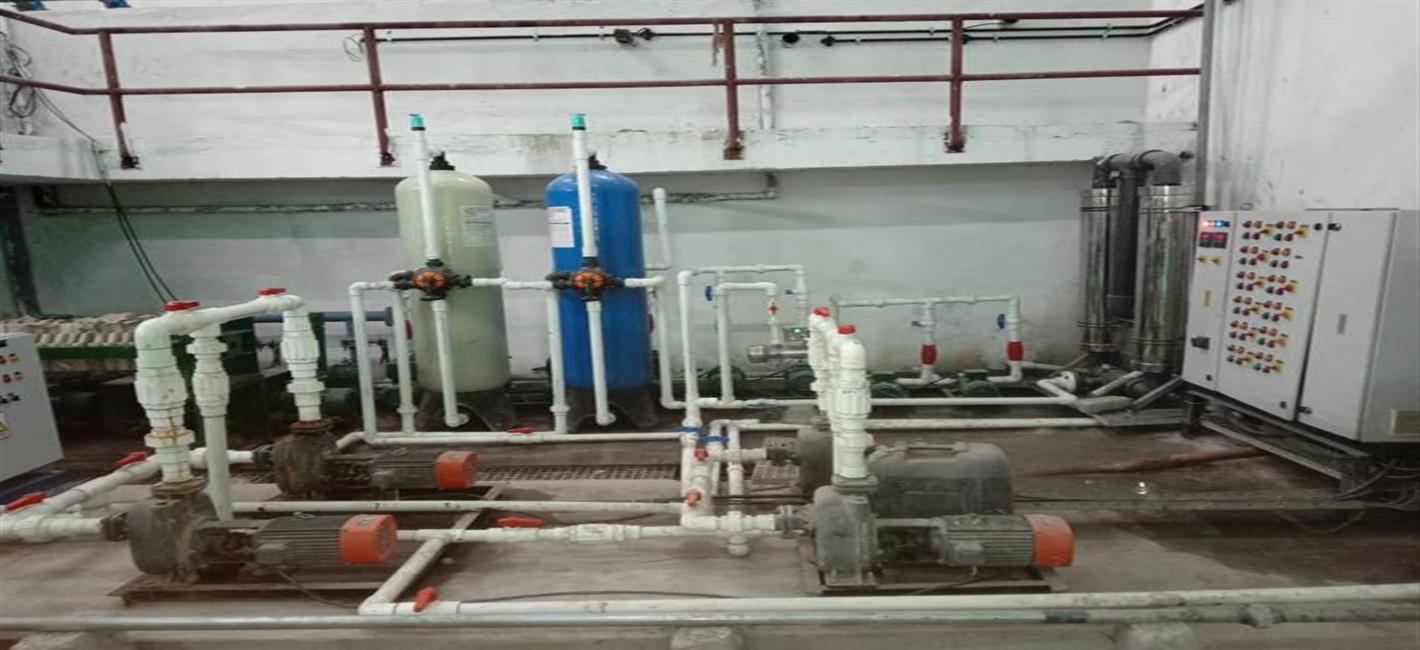

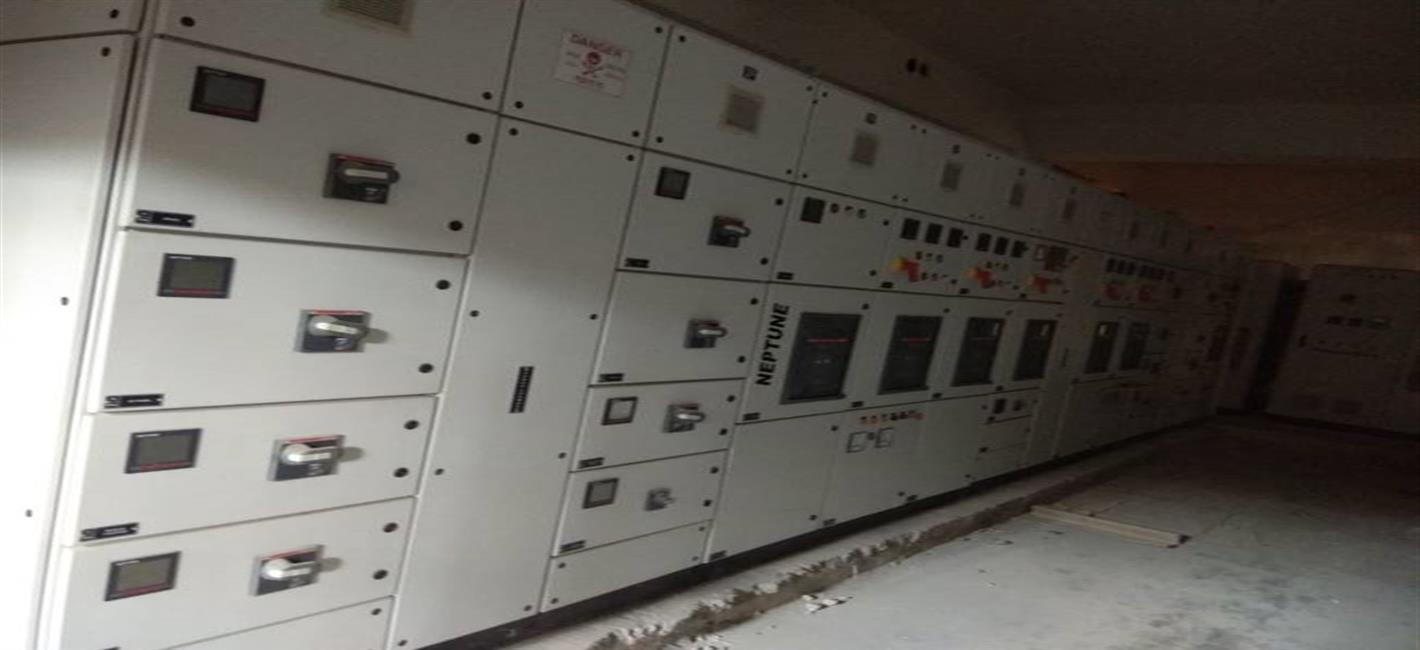

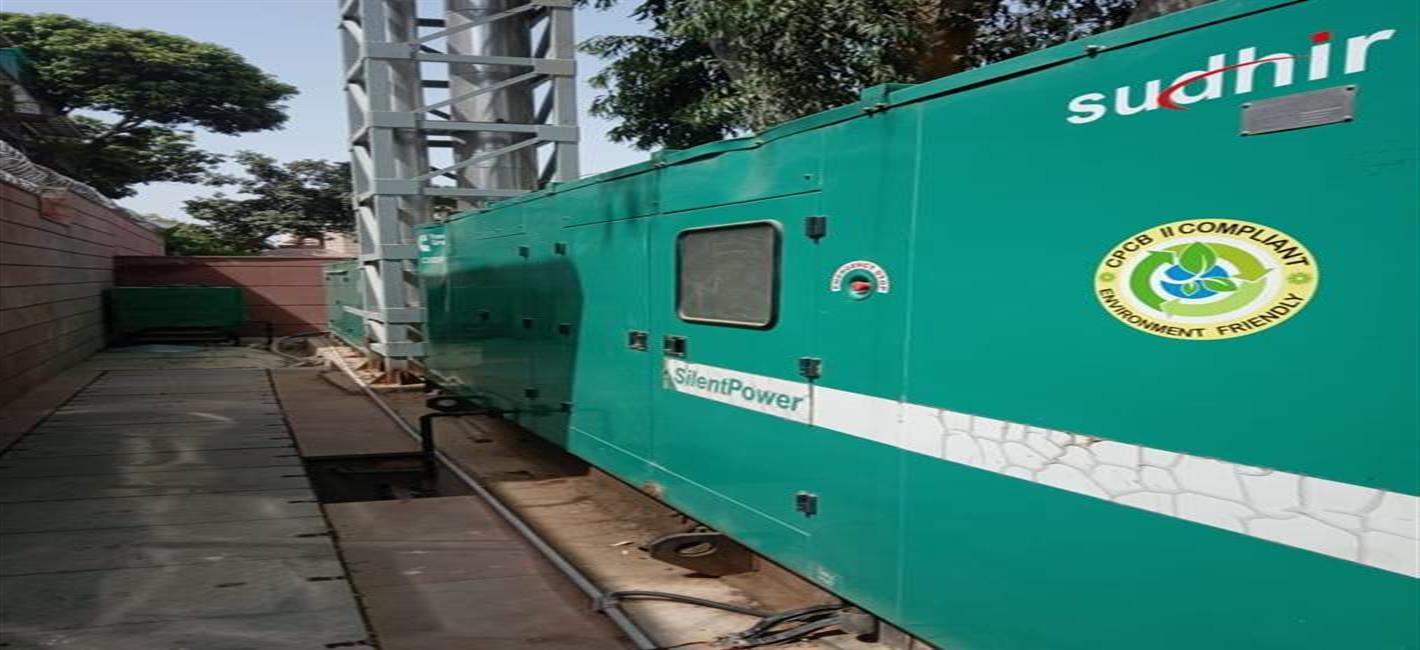

Green Features - Use of fly ash bricks and fly ash admixed cement concrete. Waste water recycling through sewage treatment plant (MBBR) of 25 KLD. Renewable energy as roof top solar power generation 50 KW installed on the curved roof and connected to grid & energy efficient LED lights only used. Rain water harvesting pits. Low VOC paint/adhesive. Rockwool products in false ceiling. HVAC System:- 100% zero ODP insulating. HCFC & CFC free HVAC system. VRV (Variable Refrigerant Volume) (346 HP):- Saving in energy more than 20%. Solar Power Generation is 50 kw while the internal light load for general lighting is 15 kw. Innovations - DMX (Data Mixing Extension) control facade lighting, musical fountain with frequency controlled pumps & DMX operated lights.

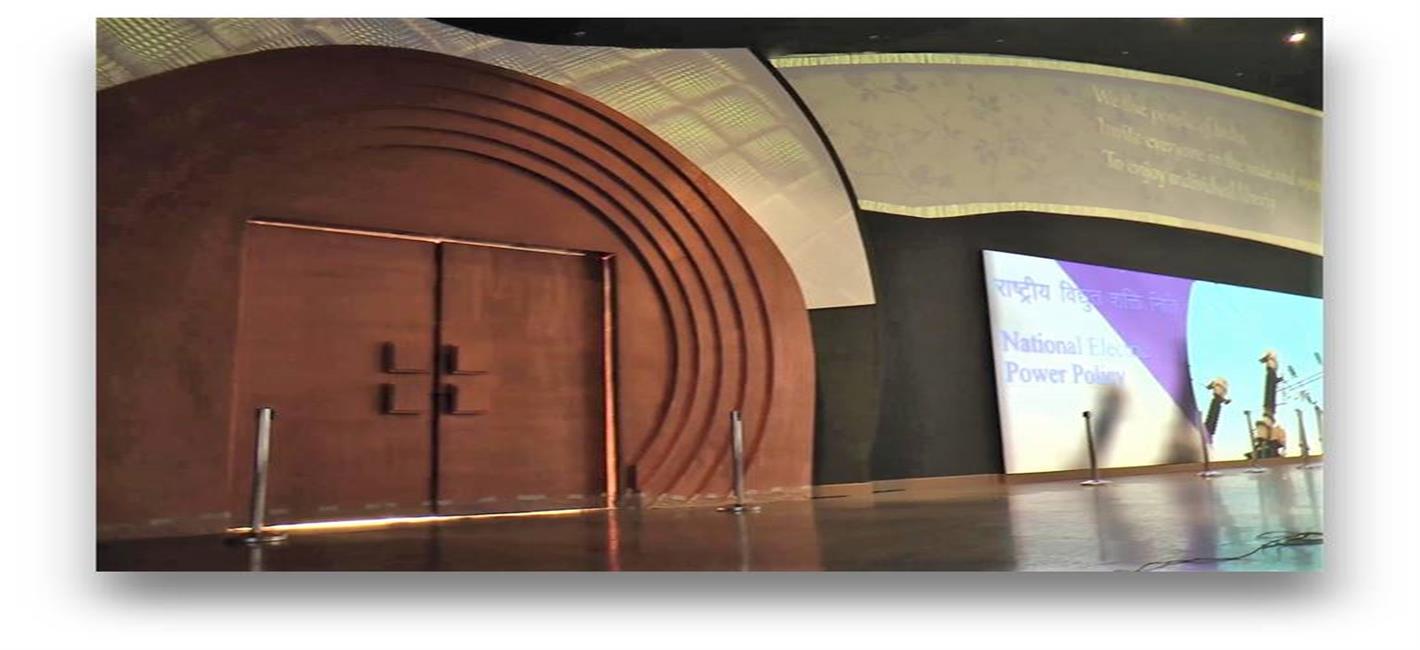

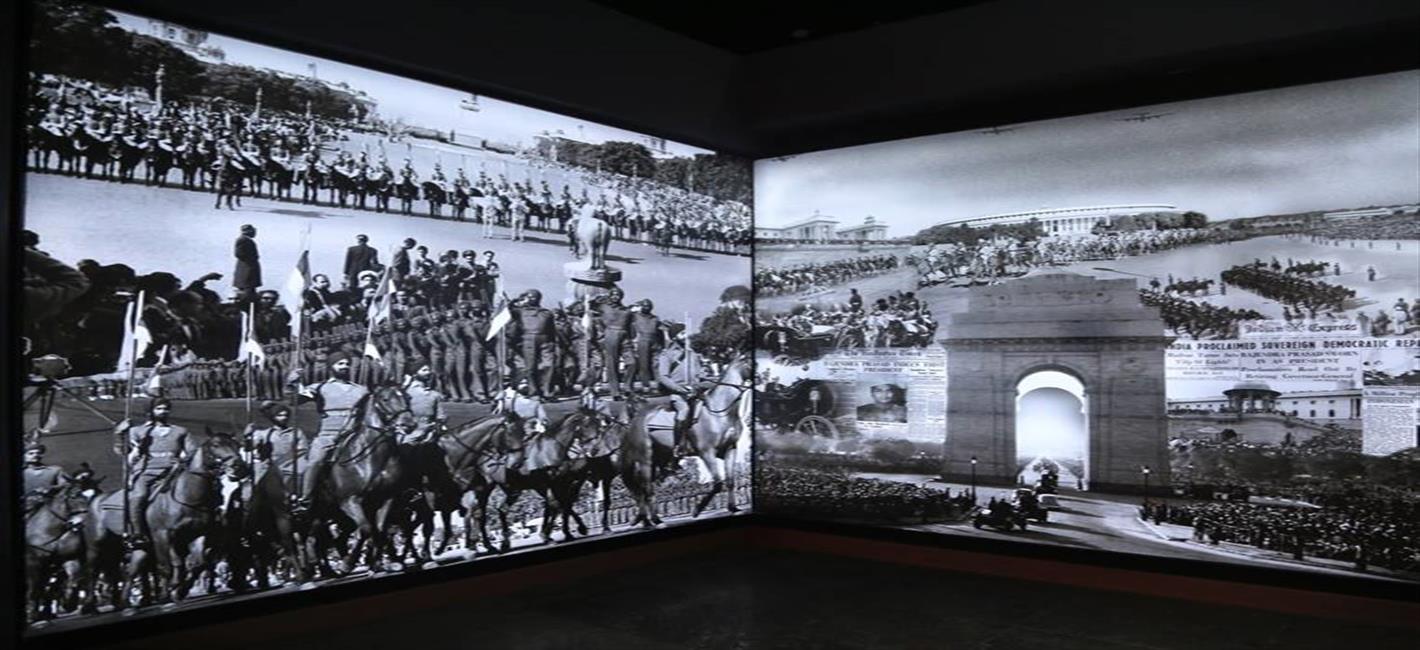

LED Wall - Indoor direct view true color LED video wall. 4mm pixel pitch based. 2 nos. of size 10368 mm x 3456 mm. 3 nos. of size 6912 mm x 5184 mm. 1 no. of size 2592mm x 5184 mm.

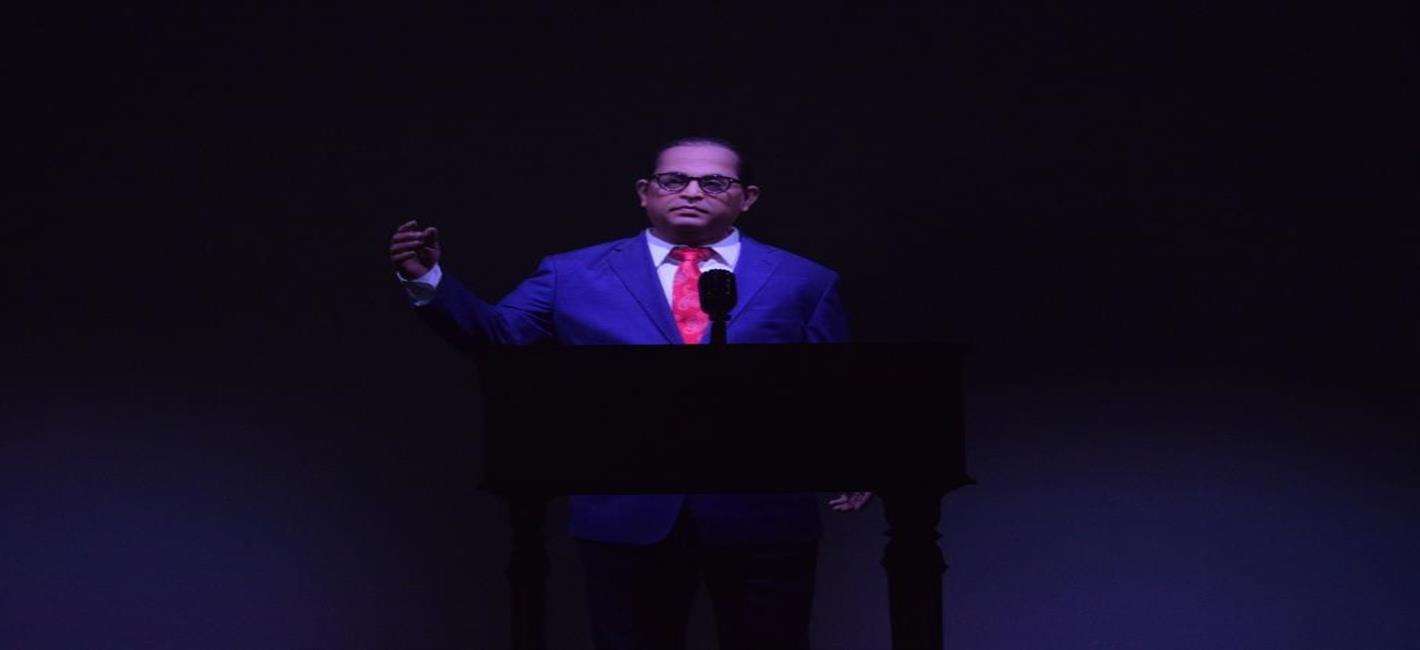

Animatronics - Life size electro-pneumatic hyper realistic animatronics. Programmed subtle human organ movements like hands, blinking eyelids and eyeball movement etc. with complete sync of speech and gesture expression.

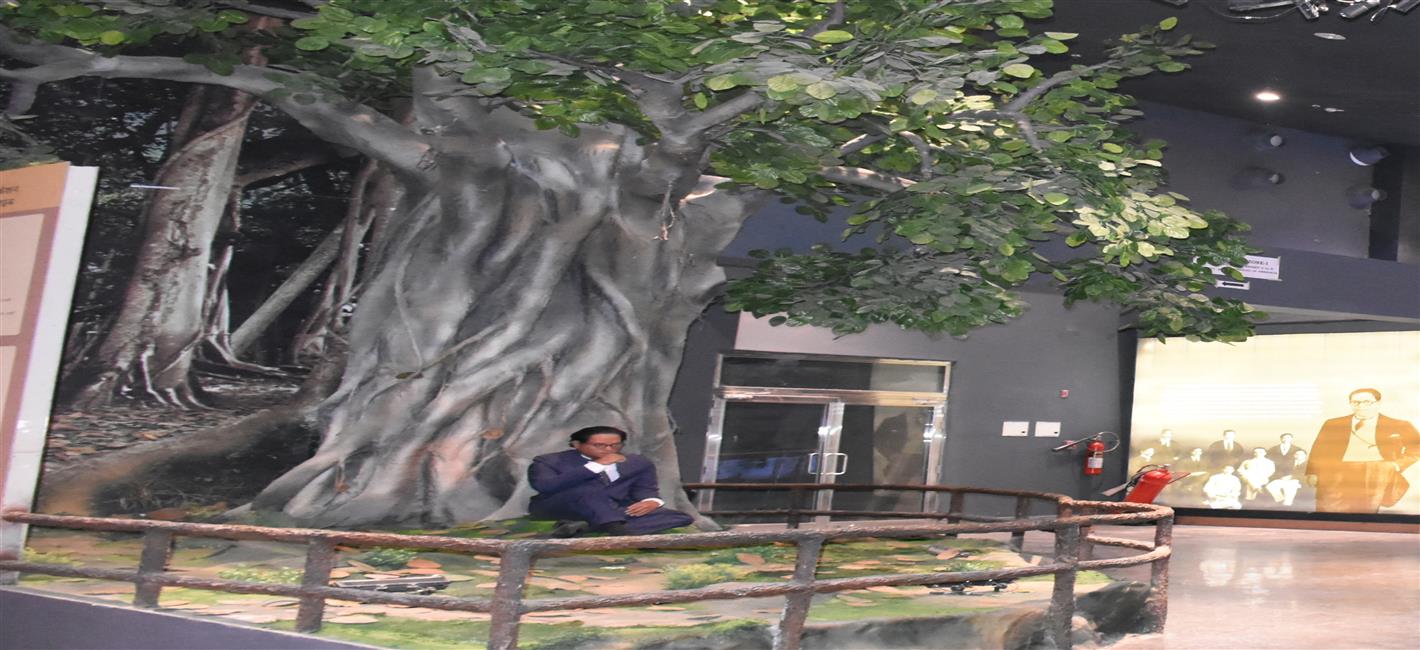

Hyper Realistic Mannequins - Exposed body parts made of silicon, pigmented to give skin texture, look and feel of real skin. Hand grafted real hairs on head, moustache, eyebrows and eyelids. Durable, long lasting.

Projection Mapping And EDGE-BLENDING - 7 x 14000 lumens projector for edge-blending. 3 projection surfaces:- Both wings of the Book structure and top surface of rear gate. Programmable visuals are mapped on the surface.

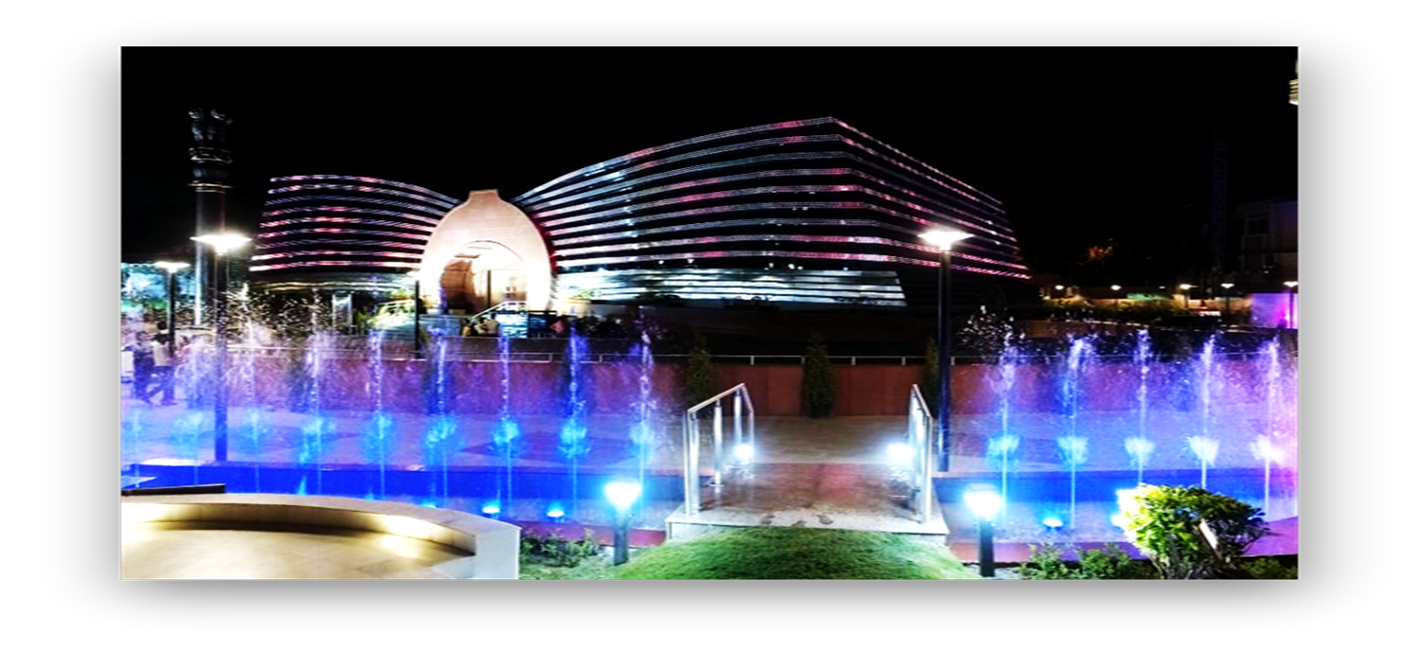

Musical Fountain - Digitally controlled, plumbing less technology. Linear musical fountain (100 m). Variable frequency controlled pumps through DMX system operation. Two vortex formation revolving nozzles at extreme ends, with misting effect. Water purified and recirculated.

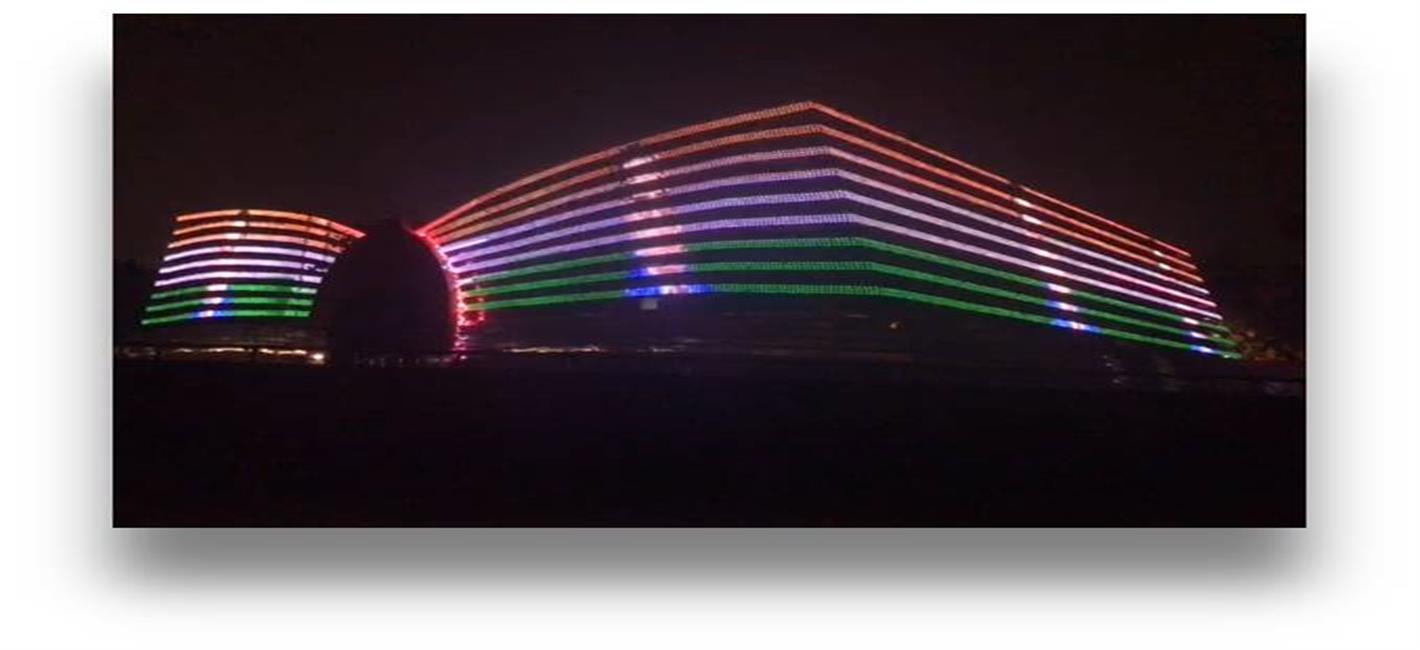

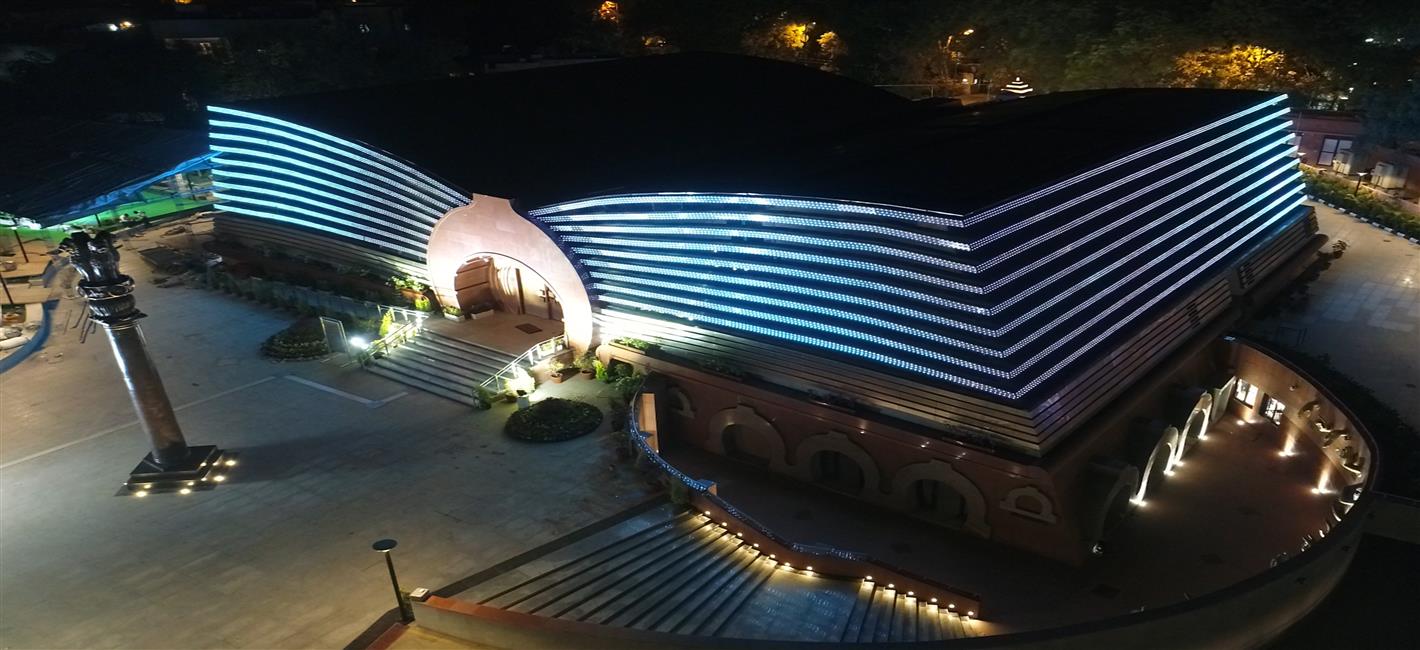

Facade Lighting - Direct illumination with strip of small LED nodes (0.5 watt) mounted on tracks fixed on S.S. fins. Each i-color flex strip contains 50 individually addressable LED nodes. Dynamic integration of power communication and control. Ethernet based network and video system manager as controller. Flipping page effect and other large number of pre-programmed light displays
