Fly Ash Bricks - Technology

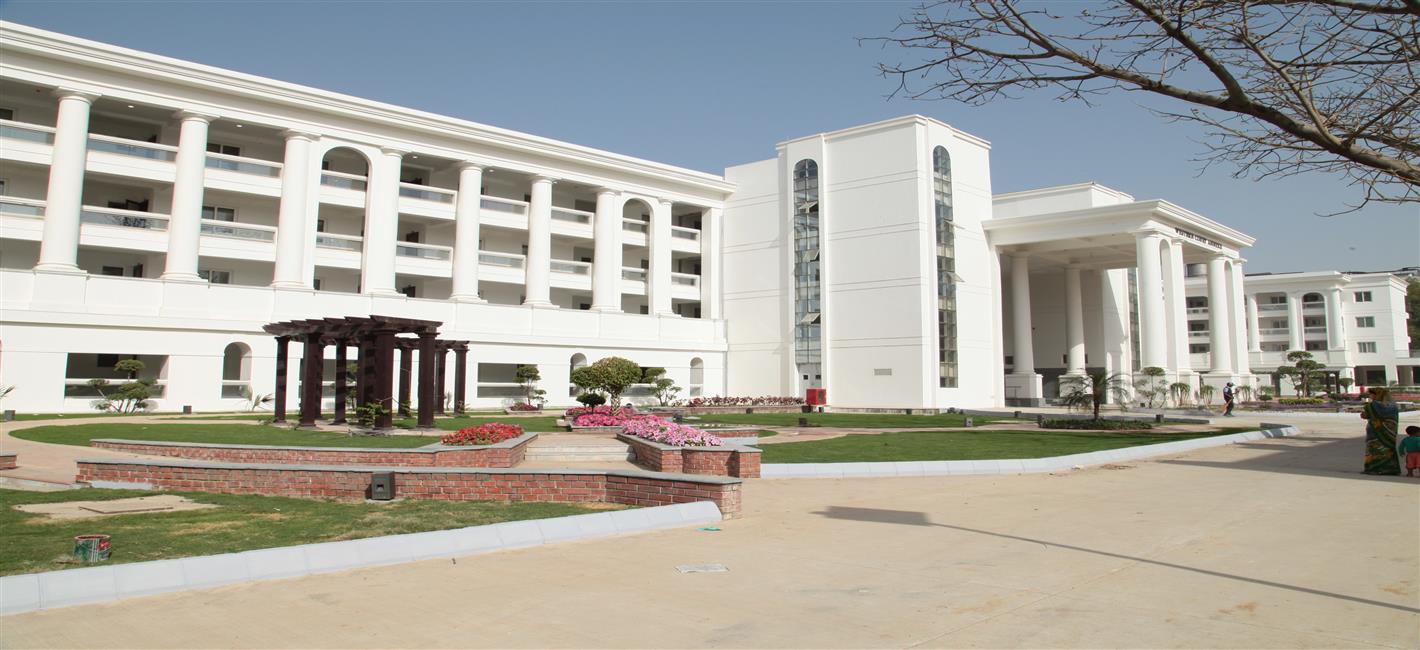

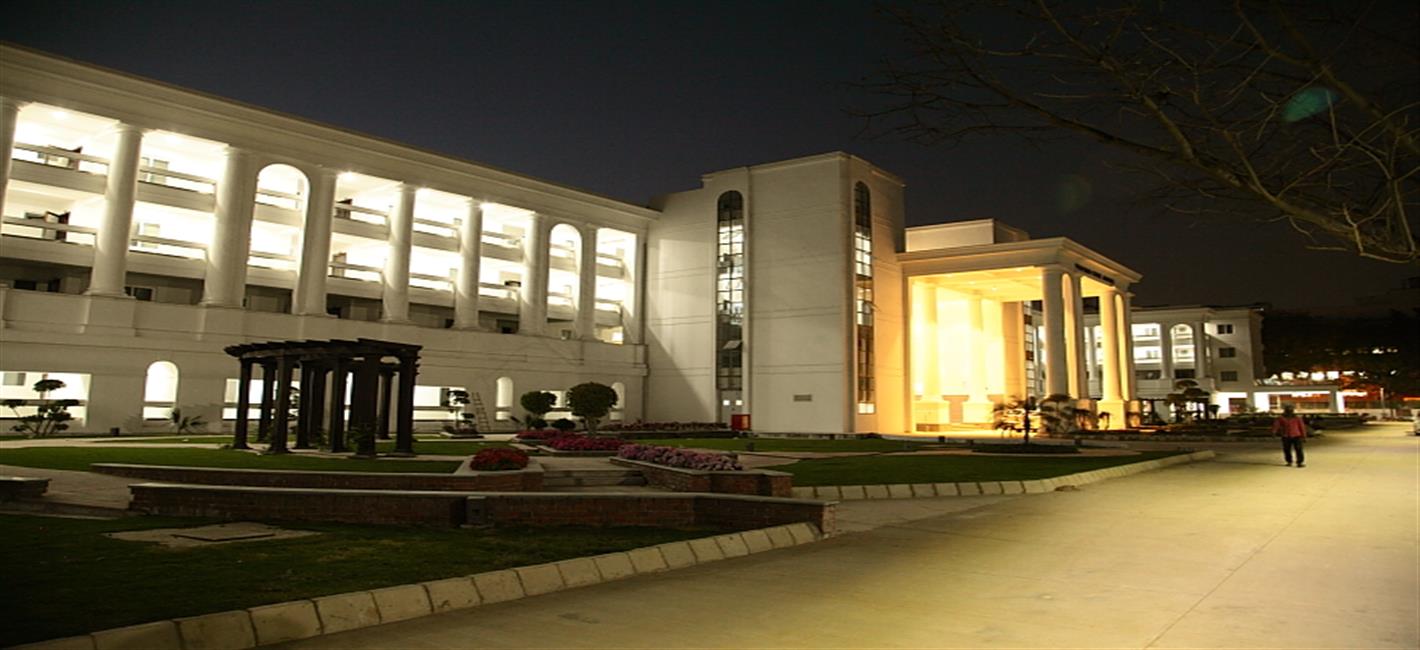

Project Name : Western Court Annexe, Janpath, New Delhi
Western Court Annexe has site area of 7.72 acres with built up area of 9220 sqm with two level basements. It is grade II heritage building. The House Committee under the Chairmanship of Shri Arjun Ram Meghwal, MP the then Chairperson House Committee decided to construct the Western court Annexe with additional 88 suites as transit accommodation to the newly elected Members of Parliament.
Western Court Annexe has site area of 7.72 acres with built up area of 9220 sqm with two level basements. It is grade II heritage building. The House Committee under the Chairmanship of Shri Arjun Ram Meghwal, MP the then Chairperson House Committee decided to construct the Western court Annexe with additional 88 suites as transit accommodation to the newly elected Members of Parliament.
700 Lakh
Project Budget
05 Dec 2016
Start Date
04 Apr 2018
Completion Date
New Delhi
Location
Project Team / Contact Us
| S.No. | Name(Mr/Mrs) | Designation | Office Address | Office Number | Mobile Number | Email ID |
|---|---|---|---|---|---|---|
| 1 | Jayesh Kumar | ADG(NDR) | ||||
| 2 | Dr. Sonia Mehta | Chief Architect | ||||
| 3 | Rajiv Singhal | CPM |
MATERIAL
Name
Fly Ash Bricks
Description
The Wesrn Court Annexe project uses a combination of fly ash bricks and C&D block masonry to ease construction in a time frame. These materials are readily and readily available compared to other options. This helped in faster construction at the time of execution.
Fly Ash Bricks (FAB) is a building material, especially masonry units, which contain class C or class F fly ash and water. Compressed at 28 MPa (272 atm) and fixed for 24 hours in a 66°C steam bath, then hardened with an air entrainment agent, the bricks last for more than 100 freeze-thaw cycles. After 15 – 20 days of production, fly ash bricks are sold in the market.
Advantage:
a.20-40% due to the right size savings in cement mortar for making and plastering walls
b. The strength of the supply lot is the same.
c. Plaster of Paris, putty can be applied directly without a backing coat plaster.
d. Less water penetration in clay bricks.
e. Can be used for high strength-bearing walls.
f. Eco-friendly using fly ash.
Comparison of clay bricks and fly ash bricks
|
Major Gains
Over and above all the above mentioned characteristics these helped in speedy construction at the time of execution. The Project completed before expected time.
Implementation Strategy
| S.No. | Description | Images | |
|---|---|---|---|
| 1 | Architectural planning:
Structural planning:
Other services:
Site implementation:
|
|
Lessons Learnt / Take Aways
| S.No. | Description | Images | |
|---|---|---|---|
| 1 |
Locally available material for ease of execution is very important aspect for project. |
|
