Glass Fibre Reinforced Concrete (GFRC) Blocks - Technology

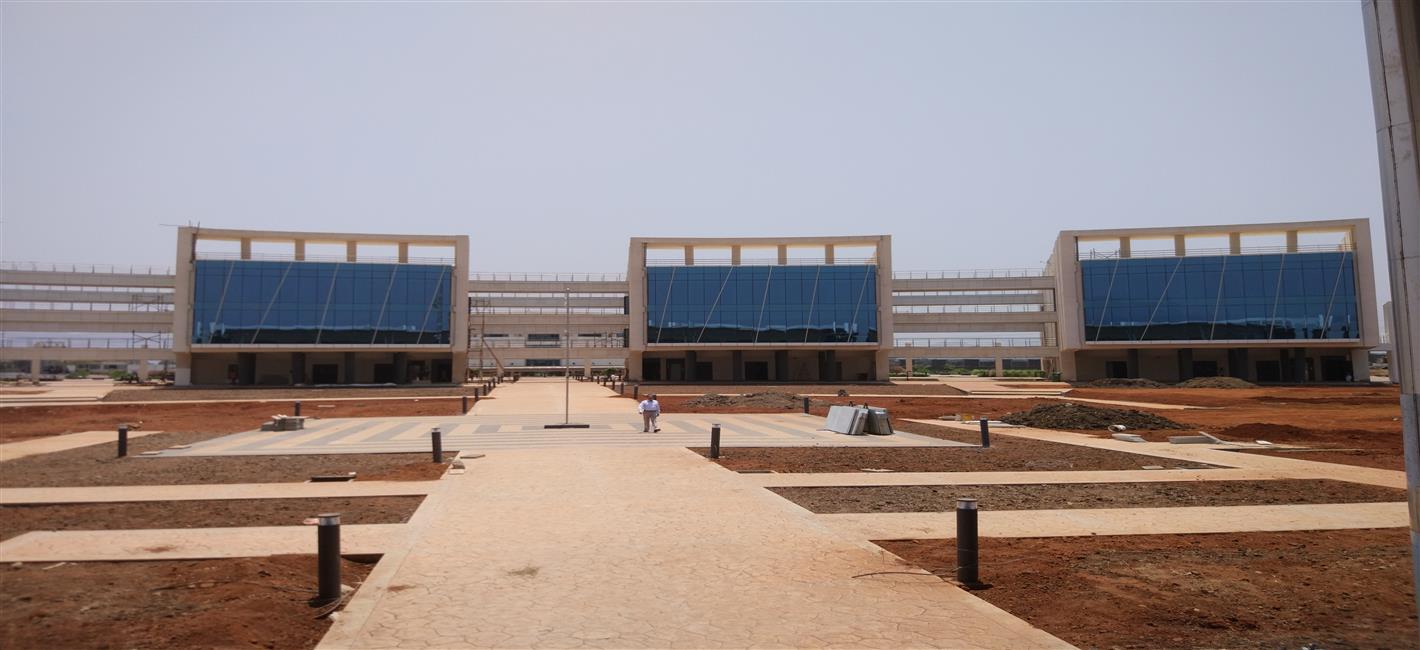

Project Name : National Institute of Securities Markets (Providing stamping finish concrete), Patalganga, Mumbai
The campus was inaugurated by Hon'ble PM on 24.12.2016 and is fully functional.
31500 (Total project cost) Lakh
Project Budget
06 Sep 2013
Start Date
12 Feb 2016
Completion Date
Mumbai
Location
Project Team / Contact Us
| S.No. | Name(Mr/Mrs) | Designation | Office Address | Office Number | Mobile Number | Email ID |
|---|---|---|---|---|---|---|
| 1 | Dr K M Soni | CE | CE (WZ-I) Mumbai | 02222059123 | 7588517958 | dr.kmsoni@gmai.com |
MATERIAL
Stamped finish or textured or imprint concrete is a decorative concrete used in flooring. Beauty of the stamped concrete is that number of finishes can be achieved with such concrete in desired colours and the surface can be resembled to bricks, stones, tiles or even wood. The process includes preparation of sub-grade, placing of forms, providing reinforcement for stability, placing the concrete, screeding and finishing the concrete, applying colour and in the last stamping the concrete using desired moulds.
It can be used as a substitute of natural stones in open areas.
Implementation Strategy
| S.No. | Description | Images | ||||
|---|---|---|---|---|---|---|

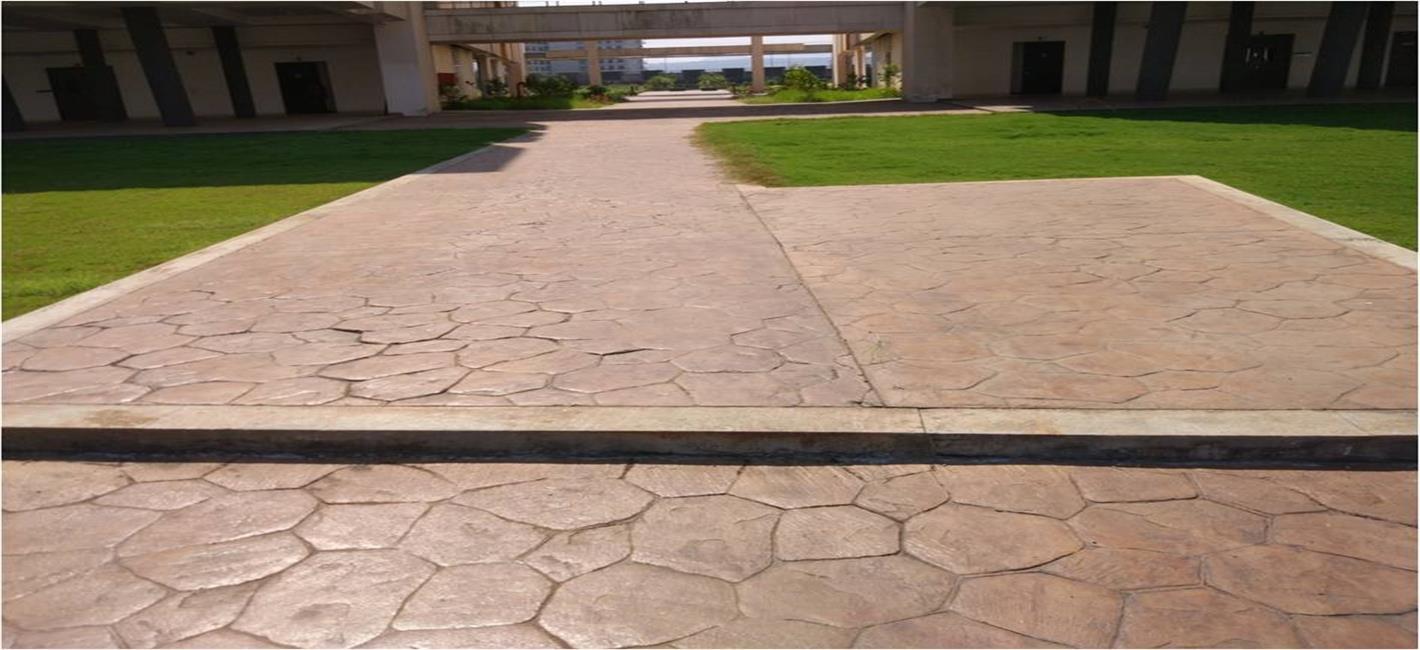

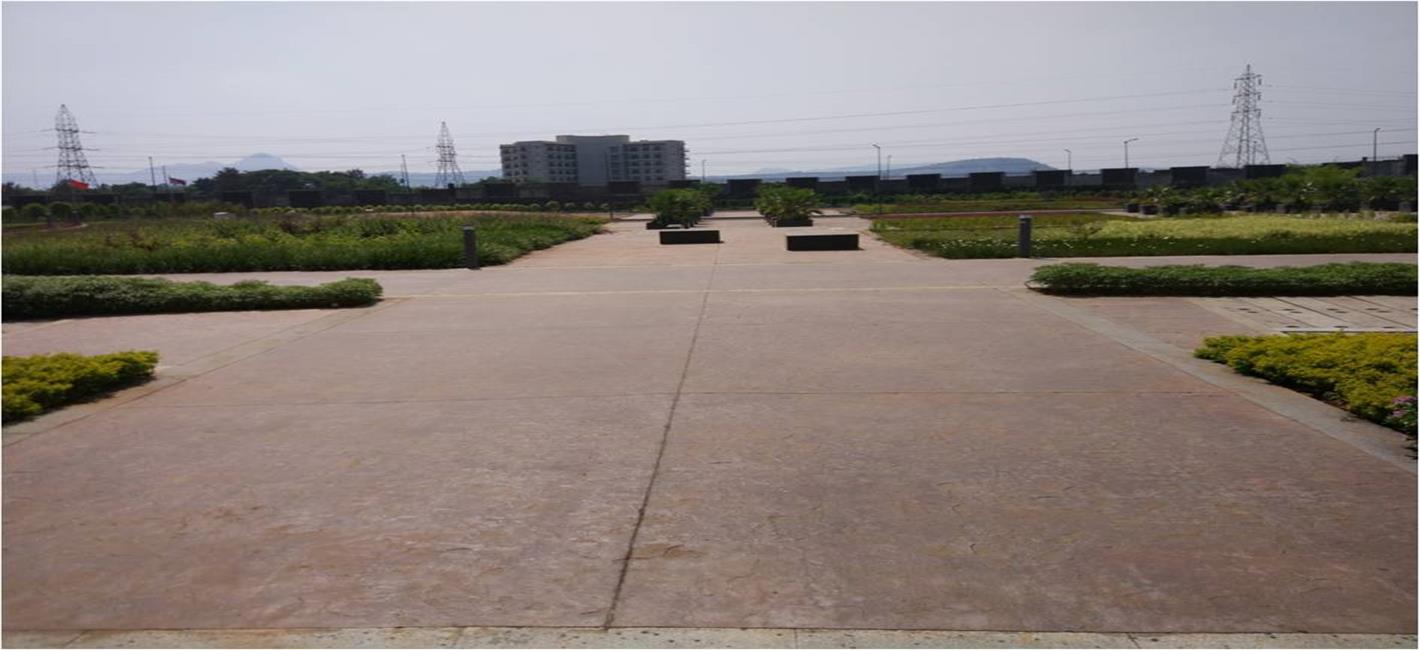

| 1 | Stamped concrete was used in the landscaped area near orientation block, at the entrance of academic blocks, on pathways to library from academic blocks, pathway connected from academic blocks to amphitheatre and dining hall and in the pathway of amphitheatre. Stamped concrete has also been used in large landscaped areas.
Specifications of Stamped Concrete The following specifications were used for the stamped concrete; i. Stamped finish concrete is inclusive of freshly laid concrete layer of specified thickness, UV resistant colour hardener, curing compound, release agent and acrylic sealer, special imprinting and texturing tools, sealer application tools etc. ii. All stamping works is to be executed by the approved specialized agency as per the manufacturer’s specifications and direction of Engineer-in-charge. The contractor was required to prepare a mock up sample of appropriate size prior to taking up the stamping work. iii. Concrete of the specified grade is to be used as base material for stamping over concrete. iv. Regular grade UV resistant colour hardener of approved colours is to be used as per manufacturer’s specifications. v. The release agent of approved make as per manufacturer’s specification and colour(s) shall be used. vi. The pattern shown in architectural drawings and approved by the Engineer-in-charge shall be made by using imprinting tools. vii. The imprinted concrete slabs shall be cured as per manufacturer’s specifications. viii. The acrylic sealer of approved make and as per manufacturer’s specifications shall be used. The consumption of sealer shall not be less than 0.167 litre per sqm. ix. The formwork shall be installed in accordance with the drawings. The slab thickness shall be as specified in the drawings. xi. Construction joints and / or expansion joints shall be provided in accordance with the drawings and as specified in the CPWD specifications or as decided by the Engineer-in-charge. xii. The concrete shall be placed and screeded to the finished grade and floated to uniform surface using standard finishing tools and techniques as per manufacturer’s specifications. xiii. The UV resistant colour hardener of approved colours duly approved by the Engineer-in-charge shall be applied evenly to the surface of the freshly laid concrete by the dry shake method in two or more shakes, floated after each shake and trowelled only after the final floating. xiv. The release agent approved by the Engineer-in-charge shall be applied evenly to the trowelled surface prior to imprinting. xv. While the concrete is still in its plastic stage of set, the imprinting tools shall be applied to the surface to get the desired pattern. xvi. The concrete will be cured in accordance with the manufacturer’s recommendations. After initial curing period, the imprinted joints shall be grouted and surface shall be sealed as per manufacturer’s specifications. Nomenclature of the item Applying stamping finish to the top surface of freshly laid plain/reinforced concrete pavements/paths in the following manner; |
|
Lessons Learnt / Take Aways
| S.No. | Description | Images | |||||
|---|---|---|---|---|---|---|---|
| 1 |
|
|
